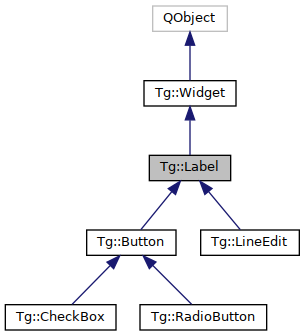

Inheritance diagram for Tg::Label:

[legend]

Collaboration diagram for Tg::Label:

Public Slots
void	setText (const QString &text, const bool expand=false)

void	setHighlighted (const bool highlighted)

Public Slots inherited from Tg::Widget
void	setPosition (const QPoint &position)
	Moves Widget to a new position. More...

void	setSize (const QSize &size)
	Resizes Widget to a new size.

void	setBackgroundColor (const Tg::Color &color)
	Changes background color.

void	setBackgroundCharacter (const QChar &character)
	Changes character drawn in the empty space of this Widget.

void	setTextColor (const Tg::Color &color)
	Changes text color.

void	setBorderTextColor (const Tg::Color &color)
	Changes border text color.

void	setBorderBackgroundColor (const Tg::Color &color)
	Changes border background color.

void	setVisible (const bool visible)
	Makes Widget visible (or not). More...

void	show ()
	Makes Widget visible. More...

void	hide ()
	Makes Widget hidden. More...

void	setBorderVisible (const bool visible)
	Makes Widget's border visible (or not).

void	setZ (const int z)

WidgetList	childrenWidgets () const
	Returns all children of this Widget which can be cast to Widget.

Signals
void	textChanged (const QString &text) const

void	highlightedChanged (const bool highlighted) const

Signals inherited from Tg::Widget
void	needsRedraw (const RedrawType type, const Widget *widget) const
	Indicates that widget (usually `this`) needs to be redrawn using redraw type.

void	positionChanged (const QPoint &position) const
	Emitted when Widget's position changes.

void	sizeChanged (const QSize &size) const
	Emitted when Widget's size is changed.

void	backgroundColorChanged (const Tg::Color &color) const
	Indicates that Widget's background color has changed.

void	backgroundCharacterChanged (const QChar &character) const
	Indicates that Widget's background character has changed.

void	textColorChanged (const Tg::Color &color) const
	Indicates that Widget's text color has changed.

void	borderTextColorChanged (const Tg::Color &color) const
	Indicates that Widget's border text color has changed.

void	borderBackgroundColorChanged (const Tg::Color &color) const
	Indicates that Widget's border background color has changed.

void	visibleChanged (const bool visible) const
	Indicates that Widget is shown or hidden (depening on visible).

void	borderVisibleChanged (const bool visible) const
	Indicates that Widget's border is now visible (or not).

void	acceptsFocusChanged (const bool accepts) const
	Indicates that Widget now accepts focus (or not).

void	hasFocusChanged (const bool hasFocus) const
	Indicates that Widget now hasFocus (or not).

void	moveFocusToPreviousWidget () const
	Indicates that active focus should be moved to the previous Widget ready to receive it.

void	moveFocusToNextWidget () const
	Indicates that active focus should be moved to the next Widget ready to receive it.

void	propagatesStyleChanged (const bool propagates) const
	Indicates that Widget either stopped or resumed (propagates) propagating its Style object to its children.

void	styleChanged () const
	Emitted when Widget's Style object is changed.

void	layoutOvershootChanged (const SizeOvershoot overshoot) const
	Emitted when layout overshoot has changed.

void	widgetOvershootChanged (const SizeOvershoot overshoot) const
	Emitted when Widget overshoot has changed.

void	childAdded (Widget *child) const
	Emitted when a child Widget has been added.

void	childRemoved () const
	Emitted when a child Widget has been removed.

void	zChanged (const int z) const
	Emitted when z value changes.

Public Member Functions
	Label (Widget *parent)

	Label (Screen *screen)

	Label (const QString &text=QString(), Widget *parent=nullptr)

	Label (const QString &text=QString(), Screen *screen=nullptr)

QString	text () const

bool	highlighted () const

Public Member Functions inherited from Tg::Widget
	Widget (Widget *parent)
	Constructs Widget as a child of parent. More...

	Widget (Screen *screen)
	Constructs a top-level Widget on a given screen. More...

	~Widget ()
	Deregisters the Widget from parent Screen, then destroys the Widget object.

QPoint	position () const
	Returns current position of the Widget (relative). More...

QSize	size () const
	Returns current size of the Widget. More...

QRect	boundingRectangle () const
	Returns the rectangle constructed from position() and size(). More...

QRect	globalBoundingRectangle () const
	Returns the rectangle contructed from position() (mapped to global coordinates using mapToGlobal()) and size(). More...

QRect	contentsRectangle () const
	Returns the rectangle which holds Widget interior. More...

Tg::Color	backgroundColor () const
	Returns current background color - either taken from Style or value set using setBackgroundColor(). More...

QChar	backgroundCharacter () const
	Returns character drawn on empty space in this Widget.

Tg::Color	textColor () const
	Returns current text color - either taken from Style or value set using setTextColor(). More...

Tg::Color	borderTextColor () const
	Returns current border text color - either taken from Style or value set using setBorderTextColor(). More...

Tg::Color	borderBackgroundColor () const
	Returns current border background color - either taken from Style or value set using setBorderBackgroundColor(). More...

bool	visible () const
	Returns `true` when Widget is visible.

bool	borderVisible () const
	Returns `true` when Widget's border is visible. More...

bool	acceptsFocus () const
	Returns `true` when Widget is set to accept focus (keyboard or mouse). More...

bool	hasFocus () const
	Returns `true` when Widget actively holds focus (is receiving keyboard events). More...

void	setAcceptsFocus (const bool accept)
	When accept is `true`, this Widget will receive keyboard events from Screen instance - but only when it actively holds focus (see hasFocus()). More...

Screen *	screen () const
	Returns the Screen on which this Widget is being drawn.

Widget *	parentWidget () const
	Returns the parent Widget. More...

Widget *	topLevelParentWidget () const
	Returns top-level parent of current Widget. More...

bool	isTopLevel () const
	Returns `true` if this Widget is top-level. More...

bool	isBorder (const QPoint &pixel) const
	Returns `true` when pixel lies within the border of the Widget. More...

bool	verticalArrowsMoveFocus () const
	Returns `true` if this Widget ignores up and down arrows on keyboard. More...

QPoint	mapFromGlobal (const QPoint &position) const
	Returns position mapped from global coordinates into local one (coordinates within the Widget, where (0,0) is top-left corner).

QPoint	mapToGlobal (const QPoint &position) const
	Returns position mapped from local coordinates into global ones (coordinates within parent Screen).

QPoint	mapToChild (const WidgetPointer &child, const QPoint &position) const
	Returns position mapped into child coordinate system.

bool	propagatesStyle () const
	Returns `true` if this Widget automatically applies its Style to all children Widgets. More...

void	setStyle (const StylePointer &style, const bool propagate=true)
	Sets a new Style on this Widget. More...

Layout::Type	layoutType () const
	Returns Layout type. More...

void	setLayoutType (const Layout::Type type)
	Sets the way this Widget places, paints and treats children widgets to type.

SizeOvershoot	layoutOvershoot () const
	Returns current overshoot of layout inside this Widget. More...

SizeOvershoot	widgetOvershoot () const
	Returns current overshoot of contents of this Widget. More...

int	z () const
	Returns the z value - position of this Widget on z order stack.

Protected Member Functions
void	init () override
	Initializes Widget and it's connections. More...

QString	drawPixel (const QPoint &pixel) const override
	Returns ANSI-encoded string, used by Screen to draw the pixel. More...

int	reservedCharactersCount () const

QString	reservedText () const

void	setReservedText (const QString &reserved)

Protected Member Functions inherited from Tg::Widget
void	setHasFocus (const bool active)
	Sets this Widget to hold active focus (or not). More...

virtual void	consumeKeyboardBuffer (const QString &keyboardBuffer)
	Called when Widget accepts focus and keyboardBuffer is not empty. More...

virtual QString	drawBorderPixel (const QPoint &pixel) const
	Returns ANSI-encoded string, used by Screen to draw the pixel. More...

QPoint	previousGlobalPosition () const
	Returns Widget's last position (before it was moved), in global coordinates. More...

QSize	previousSize () const
	Returns Widget's previous size (before it was resized). More...

QRect	globalPreviousBoundingRectangle () const
	Returns globalBoundingRectangle() recorded last time when widget was moved or its size has been changed.

int	effectiveBorderWidth () const
	If borders are visible, it returns border width. More...

void	setVerticalArrowsMoveFocus (const bool enable)
	If enable is `true`, clicking up arrow or down arrow on keyboard will be intercepted by parent Screen and used to switch focus to previous or next Widget. More...

void	setPropagatesStyle (const bool propagate)
	When propagate is `true`, this Widget will set its style() object on its children whenever it changes. More...

void	propagateStyleToChild (Widget *child) const
	Propagates style() to child. More...

StylePointer	style () const
	Returns the pointer to Style object used to draw this Widget. More...

void	setWidgetOvershoot (const SizeOvershoot overshoot)
	Sets current overshoot of the contents of this Widget.

void	setupPressTimer (QTimer *timer) const
	Sets timer object which controls how long pressed elements (buttons, scroll bar arrows, etc.) look different (pressed). More...

void	doLayout ()
	Forces Widget to lay out its children according to layoutType(). More...

Properties
QString	text

bool	highlighted

Properties inherited from Tg::Widget
QPoint	position
	Position of Widget. More...

QSize	size
	Size of the Widget. More...

int	z
	Widget position on the `z` axis - this is used to control which Widgets should be displayed above and which below if they overlap.

Tg::Color	backgroundColor
	Color of the background of Widget's interior (contentsRectangle()). More...

QChar	backgroundCharacter
	This is the character which fills the empty background. More...

Tg::Color	textColor
	Color of the characters ("foreground color") printed inside of the Widget (see contentsRectangle()). More...

Tg::Color	borderTextColor
	Color of the characters ("foreground color") printed on the borders of the Widget (see boundingRectangle()). More...

Tg::Color	borderBackgroundColor
	Color of the background of Widget's border (see boundingRectangle()). More...

bool	visible
	A visible Widget is visible. More...

bool	borderVisible
	Controls whether border is drawn. More...

bool	acceptsFocus
	When true, Widget will receive keyboard signals (Screen will call consumeKeyboardBuffer()) when its turn comes.

bool	hasFocus
	Returns `true` when Widget is currently actively listening to keyboard signals. More...

bool	propagatesStyle
	If `true`, Widget will set its Style object on its children widgets. More...

Additional Inherited Members
Protected Slots inherited from Tg::Widget
void	scheduleFullRedraw () const
	Instructs Screen that full redraw of entire Screen area should be performed. More...

void	schedulePartialRedraw () const
	Instructs Screen to redraw this Widget only, at its current position. More...

void	schedulePreviousPositionRedraw () const
	Instructs Screen to redraw the area previously occupied by this Widget. More...

Member Function Documentation

◆ drawPixel()

QString Tg::Label::drawPixel ( const QPoint & pixel ) const

overrideprotectedvirtual

Returns ANSI-encoded string, used by Screen to draw the pixel.

"Draws" the internal contents of the Widget. Default implementation draws the border (see drawBorderPixel()), any child Widgets (if present), in accordance with layoutType(). If there is any empty space left, it is filled with backgroundCharacter().

See also: drawBorderPixel, layoutType, setLayoutType, backgroundCharacter, children

Reimplemented from Tg::Widget.

◆ init()

void Tg::Label::init ( )

overrideprotectedvirtual

Initializes Widget and it's connections.

All subclasses should call init() of its parent class. If a subclass has any properties or signals which affect the visual look of the Widget, it should reimplement init() and connect such signal to schedulePartialRedraw() slot.

See also: schedulePartialRedraw

Reimplemented from Tg::Widget.

Reimplemented in Tg::RadioButton, and Tg::LineEdit.

The documentation for this class was generated from the following files:

widgets/widgets/tglabel.h
widgets/widgets/tglabel.cpp

Public Slots

Signals

Public Member Functions

Protected Member Functions

Properties

Additional Inherited Members

Member Function Documentation

◆ drawPixel()

◆ init()
