Base class for all widgets in a Terminal Gui application. More...

#include <tgwidget.h>

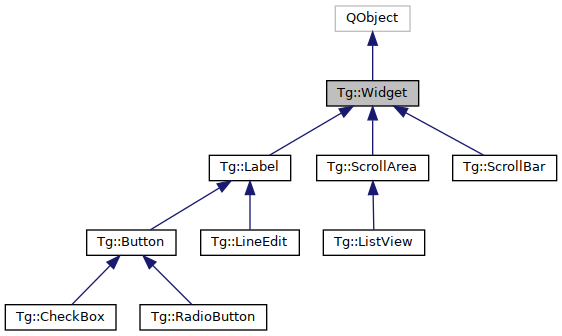

Inheritance diagram for Tg::Widget:

[legend]

Collaboration diagram for Tg::Widget:

Public Slots
void	setPosition (const QPoint &position)
	Moves Widget to a new position. More...

void	setSize (const QSize &size)
	Resizes Widget to a new size.

void	setBackgroundColor (const Tg::Color &color)
	Changes background color.

void	setBackgroundCharacter (const QChar &character)
	Changes character drawn in the empty space of this Widget.

void	setTextColor (const Tg::Color &color)
	Changes text color.

void	setBorderTextColor (const Tg::Color &color)
	Changes border text color.

void	setBorderBackgroundColor (const Tg::Color &color)
	Changes border background color.

void	setVisible (const bool visible)
	Makes Widget visible (or not). More...

void	show ()
	Makes Widget visible. More...

void	hide ()
	Makes Widget hidden. More...

void	setBorderVisible (const bool visible)
	Makes Widget's border visible (or not).

void	setZ (const int z)

WidgetList	childrenWidgets () const
	Returns all children of this Widget which can be cast to Widget.

Signals
void	needsRedraw (const RedrawType type, const Widget *widget) const
	Indicates that widget (usually `this`) needs to be redrawn using redraw type.

void	positionChanged (const QPoint &position) const
	Emitted when Widget's position changes.

void	sizeChanged (const QSize &size) const
	Emitted when Widget's size is changed.

void	backgroundColorChanged (const Tg::Color &color) const
	Indicates that Widget's background color has changed.

void	backgroundCharacterChanged (const QChar &character) const
	Indicates that Widget's background character has changed.

void	textColorChanged (const Tg::Color &color) const
	Indicates that Widget's text color has changed.

void	borderTextColorChanged (const Tg::Color &color) const
	Indicates that Widget's border text color has changed.

void	borderBackgroundColorChanged (const Tg::Color &color) const
	Indicates that Widget's border background color has changed.

void	visibleChanged (const bool visible) const
	Indicates that Widget is shown or hidden (depening on visible).

void	borderVisibleChanged (const bool visible) const
	Indicates that Widget's border is now visible (or not).

void	acceptsFocusChanged (const bool accepts) const
	Indicates that Widget now accepts focus (or not).

void	hasFocusChanged (const bool hasFocus) const
	Indicates that Widget now hasFocus (or not).

void	moveFocusToPreviousWidget () const
	Indicates that active focus should be moved to the previous Widget ready to receive it.

void	moveFocusToNextWidget () const
	Indicates that active focus should be moved to the next Widget ready to receive it.

void	propagatesStyleChanged (const bool propagates) const
	Indicates that Widget either stopped or resumed (propagates) propagating its Style object to its children.

void	styleChanged () const
	Emitted when Widget's Style object is changed.

void	layoutOvershootChanged (const SizeOvershoot overshoot) const
	Emitted when layout overshoot has changed.

void	widgetOvershootChanged (const SizeOvershoot overshoot) const
	Emitted when Widget overshoot has changed.

void	childAdded (Widget *child) const
	Emitted when a child Widget has been added.

void	childRemoved () const
	Emitted when a child Widget has been removed.

void	zChanged (const int z) const
	Emitted when z value changes.

Public Member Functions
	Widget (Widget *parent)
	Constructs Widget as a child of parent. More...

	Widget (Screen *screen)
	Constructs a top-level Widget on a given screen. More...

	~Widget ()
	Deregisters the Widget from parent Screen, then destroys the Widget object.

QPoint	position () const
	Returns current position of the Widget (relative). More...

QSize	size () const
	Returns current size of the Widget. More...

QRect	boundingRectangle () const
	Returns the rectangle constructed from position() and size(). More...

QRect	globalBoundingRectangle () const
	Returns the rectangle contructed from position() (mapped to global coordinates using mapToGlobal()) and size(). More...

QRect	contentsRectangle () const
	Returns the rectangle which holds Widget interior. More...

Tg::Color	backgroundColor () const
	Returns current background color - either taken from Style or value set using setBackgroundColor(). More...

QChar	backgroundCharacter () const
	Returns character drawn on empty space in this Widget.

Tg::Color	textColor () const
	Returns current text color - either taken from Style or value set using setTextColor(). More...

Tg::Color	borderTextColor () const
	Returns current border text color - either taken from Style or value set using setBorderTextColor(). More...

Tg::Color	borderBackgroundColor () const
	Returns current border background color - either taken from Style or value set using setBorderBackgroundColor(). More...

bool	visible () const
	Returns `true` when Widget is visible.

bool	borderVisible () const
	Returns `true` when Widget's border is visible. More...

bool	acceptsFocus () const
	Returns `true` when Widget is set to accept focus (keyboard or mouse). More...

bool	hasFocus () const
	Returns `true` when Widget actively holds focus (is receiving keyboard events). More...

void	setAcceptsFocus (const bool accept)
	When accept is `true`, this Widget will receive keyboard events from Screen instance - but only when it actively holds focus (see hasFocus()). More...

Screen *	screen () const
	Returns the Screen on which this Widget is being drawn.

Widget *	parentWidget () const
	Returns the parent Widget. More...

Widget *	topLevelParentWidget () const
	Returns top-level parent of current Widget. More...

bool	isTopLevel () const
	Returns `true` if this Widget is top-level. More...

bool	isBorder (const QPoint &pixel) const
	Returns `true` when pixel lies within the border of the Widget. More...

bool	verticalArrowsMoveFocus () const
	Returns `true` if this Widget ignores up and down arrows on keyboard. More...

QPoint	mapFromGlobal (const QPoint &position) const
	Returns position mapped from global coordinates into local one (coordinates within the Widget, where (0,0) is top-left corner).

QPoint	mapToGlobal (const QPoint &position) const
	Returns position mapped from local coordinates into global ones (coordinates within parent Screen).

QPoint	mapToChild (const WidgetPointer &child, const QPoint &position) const
	Returns position mapped into child coordinate system.

bool	propagatesStyle () const
	Returns `true` if this Widget automatically applies its Style to all children Widgets. More...

void	setStyle (const StylePointer &style, const bool propagate=true)
	Sets a new Style on this Widget. More...

Layout::Type	layoutType () const
	Returns Layout type. More...

void	setLayoutType (const Layout::Type type)
	Sets the way this Widget places, paints and treats children widgets to type.

SizeOvershoot	layoutOvershoot () const
	Returns current overshoot of layout inside this Widget. More...

SizeOvershoot	widgetOvershoot () const
	Returns current overshoot of contents of this Widget. More...

int	z () const
	Returns the z value - position of this Widget on z order stack.

Protected Slots
void	scheduleFullRedraw () const
	Instructs Screen that full redraw of entire Screen area should be performed. More...

void	schedulePartialRedraw () const
	Instructs Screen to redraw this Widget only, at its current position. More...

void	schedulePreviousPositionRedraw () const
	Instructs Screen to redraw the area previously occupied by this Widget. More...

Protected Member Functions
virtual void	init ()
	Initializes Widget and it's connections. More...

void	setHasFocus (const bool active)
	Sets this Widget to hold active focus (or not). More...

virtual void	consumeKeyboardBuffer (const QString &keyboardBuffer)
	Called when Widget accepts focus and keyboardBuffer is not empty. More...

virtual QString	drawBorderPixel (const QPoint &pixel) const
	Returns ANSI-encoded string, used by Screen to draw the pixel. More...

virtual QString	drawPixel (const QPoint &pixel) const
	Returns ANSI-encoded string, used by Screen to draw the pixel. More...

QPoint	previousGlobalPosition () const
	Returns Widget's last position (before it was moved), in global coordinates. More...

QSize	previousSize () const
	Returns Widget's previous size (before it was resized). More...

QRect	globalPreviousBoundingRectangle () const
	Returns globalBoundingRectangle() recorded last time when widget was moved or its size has been changed.

int	effectiveBorderWidth () const
	If borders are visible, it returns border width. More...

void	setVerticalArrowsMoveFocus (const bool enable)
	If enable is `true`, clicking up arrow or down arrow on keyboard will be intercepted by parent Screen and used to switch focus to previous or next Widget. More...

void	setPropagatesStyle (const bool propagate)
	When propagate is `true`, this Widget will set its style() object on its children whenever it changes. More...

void	propagateStyleToChild (Widget *child) const
	Propagates style() to child. More...

StylePointer	style () const
	Returns the pointer to Style object used to draw this Widget. More...

void	setWidgetOvershoot (const SizeOvershoot overshoot)
	Sets current overshoot of the contents of this Widget.

void	setupPressTimer (QTimer *timer) const
	Sets timer object which controls how long pressed elements (buttons, scroll bar arrows, etc.) look different (pressed). More...

void	doLayout ()
	Forces Widget to lay out its children according to layoutType(). More...

Properties
QPoint	position
	Position of Widget. More...

QSize	size
	Size of the Widget. More...

int	z
	Widget position on the `z` axis - this is used to control which Widgets should be displayed above and which below if they overlap.

Tg::Color	backgroundColor
	Color of the background of Widget's interior (contentsRectangle()). More...

QChar	backgroundCharacter
	This is the character which fills the empty background. More...

Tg::Color	textColor
	Color of the characters ("foreground color") printed inside of the Widget (see contentsRectangle()). More...

Tg::Color	borderTextColor
	Color of the characters ("foreground color") printed on the borders of the Widget (see boundingRectangle()). More...

Tg::Color	borderBackgroundColor
	Color of the background of Widget's border (see boundingRectangle()). More...

bool	visible
	A visible Widget is visible. More...

bool	borderVisible
	Controls whether border is drawn. More...

bool	acceptsFocus
	When true, Widget will receive keyboard signals (Screen will call consumeKeyboardBuffer()) when its turn comes.

bool	hasFocus
	Returns `true` when Widget is currently actively listening to keyboard signals. More...

bool	propagatesStyle
	If `true`, Widget will set its Style object on its children widgets. More...

Friends
class	Screen

class	ScrollArea

Detailed Description

Base class for all widgets in a Terminal Gui application.

Plain Widget, when drawn on screen, will draw its border and an empty interior. If it is a child of another Widget, or when borderVisible() is false, it only draw empty contents.

Subclassing

Widget subclasses reimplement its drawPixel() method to draw actual contents. It is also very important to reimplement init() method and put initialization code there, plus all signal and slot connections necessary to update the Screen when Widget changes.

Every Widget subclass should contain at least 2 constructors:

one taking Screen pointer - used when subclass is a top-level widget
one taking Widget pointer - used when subclass is not a top-level widget

If a subclass needs keyboard interaction, it should call setAcceptsFocus() in its init() override, and implement consumeKeyboardBuffer() with logic responding to key presses. See Key namespace for helper constants which make detection of particular clicks easier.

Differences from Qt Widgets

Unlike QWidget which relies on a separate class to do layouting (QLayout), Widget can lay its children automatically. This can be controlled using setLayoutType().

Styling

Widget (and all its subclasses) can be styled in several ways. By default, Widget inherits Style from its parent (or Screen class) unless propagatesStyle() returns false. A custom Style can be set (either for this Widget only, or also for all its children) using setStyle(). Alternatively, each individual style-related property can be overriden using various setters (for example: setBackgroundColor(), setTextColor() etc.). These setters always work only for this single Widget and have no effect on its children.

Since: 0.1.0

Constructor & Destructor Documentation

◆ Widget() [1/2]

Tg::Widget::Widget ( Widget * parent )

explicit

Constructs Widget as a child of parent.

By default, a child Widget does not have a border.

See also: setBorderVisible

◆ Widget() [2/2]

Tg::Widget::Widget ( Tg::Screen * screen )

explicit

Constructs a top-level Widget on a given screen.

A top-level does have a border by default.

There can be many top-level Widgets registered under the same Screen.

See also: setBorderVisible

Member Function Documentation

◆ acceptsFocus()

bool Tg::Widget::acceptsFocus ( ) const

Returns true when Widget is set to accept focus (keyboard or mouse).

See also: setAcceptsFocus, hasFocus

◆ backgroundColor()

Tg::Color Tg::Widget::backgroundColor ( ) const

Returns current background color - either taken from Style or value set using setBackgroundColor().

See also: style, setBackgroundColor

◆ borderBackgroundColor()

Tg::Color Tg::Widget::borderBackgroundColor ( ) const

Returns current border background color - either taken from Style or value set using setBorderBackgroundColor().

See also: style, setBorderBackgroundColor

◆ borderTextColor()

Tg::Color Tg::Widget::borderTextColor ( ) const

Returns current border text color - either taken from Style or value set using setBorderTextColor().

The "text" on Widget border are the lines (characters) used to draw the border. They are defined in BorderStyle.

See also: style, setBorderTextColor

◆ borderVisible()

bool Tg::Widget::borderVisible ( ) const

Returns true when Widget's border is visible.

A top-level Widget has border visible by default. It can be overriden using setBorderVisible().

See also: setBorderVisible

◆ boundingRectangle()

QRect Tg::Widget::boundingRectangle ( ) const

Returns the rectangle constructed from position() and size().

This rectangle includes Widget border and contents.

◆ consumeKeyboardBuffer()

void Tg::Widget::consumeKeyboardBuffer ( const QString & keyboardBuffer )

protectedvirtual

Called when Widget accepts focus and keyboardBuffer is not empty.

See also: acceptsFocus

Reimplemented in Tg::ScrollBar, Tg::RadioButton, Tg::Button, Tg::ListView, Tg::LineEdit, Tg::ScrollArea, and Tg::CheckBox.

◆ contentsRectangle()

QRect Tg::Widget::contentsRectangle ( ) const

Returns the rectangle which holds Widget interior.

It is similar to boundingRectangle() but with Widget border removed.

◆ doLayout()

void Tg::Widget::doLayout ( )

protected

Forces Widget to lay out its children according to layoutType().

See also: layoutType

◆ drawBorderPixel()

QString Tg::Widget::drawBorderPixel ( const QPoint & pixel ) const

protectedvirtual

Returns ANSI-encoded string, used by Screen to draw the pixel.

"Draws" the border at position pixel. The pixel is expected to be in local coordinate system (where (0,0) denotes the top-left corner of the border).

See also: drawPixel, effectiveBorderWidth

◆ drawPixel()

QString Tg::Widget::drawPixel ( const QPoint & pixel ) const

protectedvirtual

Returns ANSI-encoded string, used by Screen to draw the pixel.

"Draws" the internal contents of the Widget. Default implementation draws the border (see drawBorderPixel()), any child Widgets (if present), in accordance with layoutType(). If there is any empty space left, it is filled with backgroundCharacter().

See also: drawBorderPixel, layoutType, setLayoutType, backgroundCharacter, children

Reimplemented in Tg::ScrollBar, Tg::ScrollArea, and Tg::Label.

◆ effectiveBorderWidth()

int Tg::Widget::effectiveBorderWidth ( ) const

protected

If borders are visible, it returns border width.

Otherwise, it returns 0.

Note: Currently, setting custom border width is not supported, so this method only return 0 (zero) or 1.

See also: borderVisible

◆ globalBoundingRectangle()

QRect Tg::Widget::globalBoundingRectangle ( ) const

Returns the rectangle contructed from position() (mapped to global coordinates using mapToGlobal()) and size().

This rectangle includes Widget border and contents.

◆ hasFocus()

bool Tg::Widget::hasFocus ( ) const

Returns true when Widget actively holds focus (is receiving keyboard events).

See also: setHasFocus, acceptsFocus

◆ hide

void Tg::Widget::hide ( )

slot

Makes Widget hidden.

See also: setVisible, show

◆ init()

void Tg::Widget::init ( )

protectedvirtual

Initializes Widget and it's connections.

All subclasses should call init() of its parent class. If a subclass has any properties or signals which affect the visual look of the Widget, it should reimplement init() and connect such signal to schedulePartialRedraw() slot.

See also: schedulePartialRedraw

Reimplemented in Tg::ScrollBar, Tg::RadioButton, Tg::Button, Tg::ListView, Tg::LineEdit, Tg::ScrollArea, Tg::Label, and Tg::CheckBox.

◆ isBorder()

bool Tg::Widget::isBorder ( const QPoint & pixel ) const

Returns true when pixel lies within the border of the Widget.

If border is not visible, it will always return false.

See also: borderVisible

◆ isTopLevel()

bool Tg::Widget::isTopLevel ( ) const

Returns true if this Widget is top-level.

This means that parentWidget() returns nullptr.

◆ layoutOvershoot()

Tg::SizeOvershoot Tg::Widget::layoutOvershoot ( ) const

Returns current overshoot of layout inside this Widget.

If Widgets within the Layout do not fit the Widget, SizeOvershoot will indicate whether Widget is too small horizontally or vertically.

Visually, it is represented by drawing red arrows on Widget border (by default - see BorderStyle::horizontalOvershoot, BorderStyle::verticalOvershoot, BorderStyle::overshootTextColor and BorderStyle::overshootBackgroundColor).

◆ layoutType()

Tg::Layout::Type Tg::Widget::layoutType ( ) const

Returns Layout type.

It specifies how Widget places, paints and treats children Widgets.

◆ parentWidget()

Tg::Widget * Tg::Widget::parentWidget ( ) const

Returns the parent Widget.

If returned pointer is a nullptr, it means this Widget is a top level Widget, usually drawn with border (unless setBorderVisible() has overriden the default behavior).

See also: setBorderVisible, topLevelParentWidget

◆ position()

QPoint Tg::Widget::position ( ) const

Returns current position of the Widget (relative).

See also: mapToGlobal, boundingRectangle, globalBoundingRectangle

◆ previousGlobalPosition()

QPoint Tg::Widget::previousGlobalPosition ( ) const

protected

Returns Widget's last position (before it was moved), in global coordinates.

If Widget has not been moved, it will return same location as position() mapped to global coordinate system.

See also: previousSize

◆ previousSize()

QSize Tg::Widget::previousSize ( ) const

protected

Returns Widget's previous size (before it was resized).

If Widget has not been resized, it will return same result as size().

See also: previousGlobalPosition

◆ propagatesStyle()

bool Tg::Widget::propagatesStyle ( ) const

Returns true if this Widget automatically applies its Style to all children Widgets.

This is true by default.

◆ propagateStyleToChild()

void Tg::Widget::propagateStyleToChild ( Widget * child ) const

protected

Propagates style() to child.

Both Widgets will use the same Style object.

◆ scheduleFullRedraw

void Tg::Widget::scheduleFullRedraw ( ) const

protectedslot

Instructs Screen that full redraw of entire Screen area should be performed.

Warning: Calling this method often can cause flicker!

◆ schedulePartialRedraw

void Tg::Widget::schedulePartialRedraw ( ) const

protectedslot

Instructs Screen to redraw this Widget only, at its current position.

See also: position, size

◆ schedulePreviousPositionRedraw

void Tg::Widget::schedulePreviousPositionRedraw ( ) const

protectedslot

Instructs Screen to redraw the area previously occupied by this Widget.

This is necessary to "clean up" the are of Screen where Widget used to be before it has been moved.

See also: previousGlobalPosition, previousSize

◆ setAcceptsFocus()

void Tg::Widget::setAcceptsFocus ( const bool accept )

When accept is true, this Widget will receive keyboard events from Screen instance - but only when it actively holds focus (see hasFocus()).

In order to be able to "do something" with keyboard events, reimplement consumeKeyboardBuffer().

See also: hasFocus, acceptsFocus

◆ setHasFocus()

void Tg::Widget::setHasFocus ( const bool active )

protected

Sets this Widget to hold active focus (or not).

This method is typically only called by Screen. Setting it manually may lead to side effects.

◆ setPosition

void Tg::Widget::setPosition ( const QPoint & position )

slot

Moves Widget to a new position.

The position is relative to parent Widget, or to Screen if this Widget is top-level.

◆ setPropagatesStyle()

void Tg::Widget::setPropagatesStyle ( const bool propagate )

protected

When propagate is true, this Widget will set its style() object on its children whenever it changes.

This means that Widget and all its children will use the same Style object and draw their UI in the same way.

Note: Each visual property can be locally (only for this Widget) overriden by setting it to a value other than default. For example, calling setTextColor(Color::Predefined::Red); will set the text color of this Widget (but not its children!) to red.

◆ setStyle()

void Tg::Widget::setStyle	(	const StylePointer &	style,
		const bool	propagate = `true`
	)

Sets a new Style on this Widget.

If propagate is true, this new Style pointer will also be set on all children (recursively).

◆ setupPressTimer()

void Tg::Widget::setupPressTimer ( QTimer * timer ) const

protected

Sets timer object which controls how long pressed elements (buttons, scroll bar arrows, etc.) look different (pressed).

Warning: This method does not take ownership of the timer

See also: Button, ScrollBar

◆ setVerticalArrowsMoveFocus()

void Tg::Widget::setVerticalArrowsMoveFocus ( const bool enable )

protected

If enable is true, clicking up arrow or down arrow on keyboard will be intercepted by parent Screen and used to switch focus to previous or next Widget.

This Widget will not receive a call to consumeKeyboardBuffer().

See also: consumeKeyboardBuffer, hasFocus, acceptsFocus

◆ setVisible

void Tg::Widget::setVisible ( const bool visible )

slot

Makes Widget visible (or not).

See also: show, hide

◆ show

void Tg::Widget::show ( )

slot

Makes Widget visible.

See also: setVisible, hide

◆ size()

QSize Tg::Widget::size ( ) const

Returns current size of the Widget.

See also: boundingRectangle

◆ style()

Tg::StylePointer Tg::Widget::style ( ) const

protected

Returns the pointer to Style object used to draw this Widget.

By default, same Style object is shared by all Widgets within a Screen.

See also: setPropagatesStyle, propagateStyleToChild

◆ textColor()

Tg::Color Tg::Widget::textColor ( ) const

Returns current text color - either taken from Style or value set using setTextColor().

See also: style, setTextColor

◆ topLevelParentWidget()

Tg::Widget * Tg::Widget::topLevelParentWidget ( ) const

Returns top-level parent of current Widget.

If current Widget is already top-level, it will return a pointer to itself.

This function will never return a nullptr.

See also: parentWidget, isTopLevel

◆ verticalArrowsMoveFocus()

bool Tg::Widget::verticalArrowsMoveFocus ( ) const

Returns true if this Widget ignores up and down arrows on keyboard.

Also returns true if Widget does not accept focus at all.

◆ widgetOvershoot()

Tg::SizeOvershoot Tg::Widget::widgetOvershoot ( ) const

Returns current overshoot of contents of this Widget.

It is very similar to layoutOvershoot() but overshoot is reported when Widget contents (not children Widgets arranged by a layout) fo not fit. For example, when a Label has text which is too long to fit.

See also: layoutOvershoot

Property Documentation

◆ backgroundCharacter

QChar Tg::Widget::backgroundCharacter

readwrite

This is the character which fills the empty background.

By default it is space, so no character is shown at all (only backgroundColor()).

Note: When this property is modified, it only affects this object. Other Widgets, including children, will still get baground character from propagated Style object.

◆ backgroundColor

Tg::Color Tg::Widget::backgroundColor

readwrite

Color of the background of Widget's interior (contentsRectangle()).

Note: If no color is set (or Color::Predefined::Invalid is set), a default color will be taken from Style object (see style()).; When this property is modified, it only affects this object. Other Widgets, including children, will still get their colors from propagated Style object.

◆ borderBackgroundColor

Tg::Color Tg::Widget::borderBackgroundColor

readwrite

Color of the background of Widget's border (see boundingRectangle()).

Note: If no color is set (or Color::Predefined::Invalid is set), a default color will be taken from Style object (see style()).; When this property is modified, it only affects this object. Other Widgets, including children, will still get their colors from propagated Style object.

◆ borderTextColor

Tg::Color Tg::Widget::borderTextColor

readwrite

Color of the characters ("foreground color") printed on the borders of the Widget (see boundingRectangle()).

Note: If no color is set (or Color::Predefined::Invalid is set), a default color will be taken from Style object (see style()).; When this property is modified, it only affects this object. Other Widgets, including children, will still get their colors from propagated Style object.

◆ borderVisible

bool Tg::Widget::borderVisible

readwrite

Controls whether border is drawn.

When border is visible, Widget contents are drawn inside of it (call contentsRectangle() to get the are inside of the borders).

When border is not visible, contents fill the whole boundingRectangle() (thus contentsRectangle() and boundingRectangle() return the same data).

See also: boundingRectangle, globalBoundingRectangle, globalPreviousBoundingRectangle, contentsRectangle, effectiveBorderWidth

◆ hasFocus

bool Tg::Widget::hasFocus

read

Returns true when Widget is currently actively listening to keyboard signals.

See also: acceptsFocus

◆ position

QPoint Tg::Widget::position

readwrite

Position of Widget.

Position is relative either to the Screen or to its parent Widget.

◆ propagatesStyle

bool Tg::Widget::propagatesStyle

read

If true, Widget will set its Style object on its children widgets.

If false, WIdget will keep its Style to itself (child widgets will inherit Style from Screen instead).

◆ size

QSize Tg::Widget::size

readwrite

Size of the Widget.

If the Widget is a child of another one, with layout set, the size will be modified automatically to fit the layout.

◆ textColor

Tg::Color Tg::Widget::textColor

readwrite

Color of the characters ("foreground color") printed inside of the Widget (see contentsRectangle()).

Note: If no color is set (or Color::Predefined::Invalid is set), a default color will be taken from Style object (see style()).; When this property is modified, it only affects this object. Other Widgets, including children, will still get their colors from propagated Style object.

◆ visible

bool Tg::Widget::visible

readwrite

A visible Widget is visible.

Right?

The documentation for this class was generated from the following files:

widgets/widgets/tgwidget.h
widgets/widgets/tgwidget.cpp

Public Slots

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Properties

Friends

Detailed Description

Subclassing

Differences from Qt Widgets

Styling

Constructor & Destructor Documentation

◆ Widget() [1/2]

◆ Widget() [2/2]

Member Function Documentation

◆ acceptsFocus()

◆ backgroundColor()

◆ borderBackgroundColor()

◆ borderTextColor()

◆ borderVisible()

◆ boundingRectangle()

◆ consumeKeyboardBuffer()

◆ contentsRectangle()

◆ doLayout()

◆ drawBorderPixel()

◆ drawPixel()

◆ effectiveBorderWidth()

◆ globalBoundingRectangle()

◆ hasFocus()

◆ hide

◆ init()

◆ isBorder()

◆ isTopLevel()

◆ layoutOvershoot()

◆ layoutType()

◆ parentWidget()

◆ position()

◆ previousGlobalPosition()

◆ previousSize()

◆ propagatesStyle()

◆ propagateStyleToChild()

◆ scheduleFullRedraw

◆ schedulePartialRedraw

◆ schedulePreviousPositionRedraw

◆ setAcceptsFocus()

◆ setHasFocus()

◆ setPosition

◆ setPropagatesStyle()

◆ setStyle()

◆ setupPressTimer()

◆ setVerticalArrowsMoveFocus()

◆ setVisible

◆ show

◆ size()

◆ style()

◆ textColor()

◆ topLevelParentWidget()

◆ verticalArrowsMoveFocus()

◆ widgetOvershoot()

Property Documentation

◆ backgroundCharacter

◆ backgroundColor

◆ borderBackgroundColor

◆ borderTextColor

◆ borderVisible

◆ hasFocus

◆ position

◆ propagatesStyle

◆ size

◆ textColor

◆ visible
